Wireless Relay Controller Boards

Wireless Relay

All The Features You Need...

  • Pair with Your Computer, Open the COM Port and Start Sending Commands
  • Supports 2-way communications
  • 1 to 32 Channel versions available
  • Control one relay at a time or all relays at once with manual and automatic refreshing command set
  • CPU status LEDs show command processing Activity
  • RoHS option available
  • ProXR Lite Versions - Not Expandable
  • ProXR Versions Expandable up to 256 Relays
  • ProXR Enhanced Expandable up to 512 Relays

Wireless Relay
Wireless Relay Board

Wireless Relays are equipped with firmware built into the board that will allow you to Control one relay at a time, a bank of relays or all relays at once with manual and automatic refreshing command set.  Wireless Relay Controllers allow wireless computer controlled switching and mount as a COM port on your computer.  Wireless Relays are ideally suited for applications that require data collection and control from a single device.

Wireless Relay Options

Wireless Relays are available in 802.15.4, Bluetooth, XSC Long Range and 802.11b Wi-Fi with SPDT 5, 10 and 20 amp, SPST 30 amp and DPDT 1, 3 & 5 amp relays installed.  For an overview of each wireless protocol see bottom of page.

This Bluetooth Wireless Relay Acts like its Directly Connected to the Serial Port of your Smart Phone or Tablet!!! Wireless Data Collection and Control Could NOT be Easier!

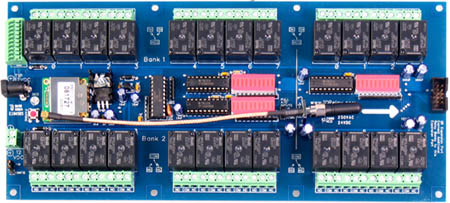

Bluetooth Wireless

Wireless Relay - Bluetooth

Bluetooth Wireless Relay

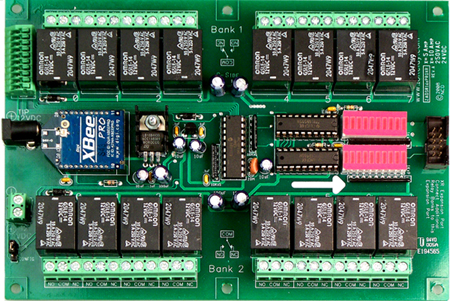

802.15.4 Wireless

Wireless Relay - ZigBee

802.15.4 Wireless Relay

Wi-Fi Relay

802.11b Wireless Relay

802.15.4 Wireless Relay
  • Embedded WiFi over 802.11b/g
  • Supports Direct TCP/IP Communications
  • Network Configuration Options
  • Supports Fixed IP Address

Mir-C Relay

Wireless Contact Closure

Mir-C Contact Closure Relay
  • Sold in Pairs
  • Range: 300 ft. to 2 Miles
  • Sender Device Controls Receiver Device
    - Contact Closure Inputs on Sender
    - Relay Outputs on Receiver
  • No Computer, No Programming

Mir-X Relay

Wireless Contact Closure

Mir-X Contact Closure Relay
  • Sold in Pairs
  • Range: 300 ft. to 2 Miles
  • Each Device Controls the Other Device
    - Local Inputs Control Remote Relays
    - Remote Inputs Control Local Relays
  • No Computer, No Programming

Key Fob Relay

Wireless Control w/Key Fob

Key Fob Control
  • Key Fob Triggers Relays
  • Key Fob Range: 200 to 300 ft.
  • Great for Wireless Button Control
  • Set Up Timers & Rotations
  • Works Without a Computer

Android Bluetooth

Smartphone & Tablet Control

Android Relay - Bluetooth
  • Range: 300 ft.
  • Free App Available
  • Pair w/Computer, Smart Phone or Tablet
  • Control up to 8 Relays using the BT App

Android Wi-Fi

Internet or LAN Control

Wi-Fi Android Relay
  • Range: Unlimited
  • Free App Available
  • Supports multiple users
  • Global Access from your mobile device

iPhone Relay

iPhone Relay Control

Android App Available
  • Internet or LAN Controlled Web Relays for iPhone and iPad
  • Bookmark the Browser Interface from your phone to run it like an App

ZB Mesh Wireless

Mesh Networking Relays

Mesh Networking Relay

XSC Wireless

Long Range Wireless Relay

XSC Long Range Wireless Relay
  • Range: 1 mi. to 15 mi.
  • XSC Modem Required
  • Mounts as a Virtual COM Port
  • Outside antenna for long distances

Android App

Android Smartphone Control

Android App Available

Wireless Relay Overview

Wireless Protocols for Today's Needs

National Control Devices offers more wireless options that any other relay manufacturer.  Each wireless protocol has a place and we're confident that you will find one to suit your application  Here's an overview of each wireless protocol we offer.

Bluetooth

We offer Bluetooth communications because of its popularity with mobile devices. If you want to control relays with your smartphone (and you are savvy at writing such an application), then Bluetooth is the ideal choice. iPhone, iPad, and iPod developers should be warned, Apple iOS devices encrypt the Bluetooth protocol deliberately, so our Bluetooth interface is compatible with every computer ever made, including Android, PCs (and every version of Windows that supports Bluetooth), and Linux (and all variants thereof that support Bluetooth), but it will NEVER work with Apple iOS devices... (Yes, we get this question all the time....)

802.15.4 Point to Point Wireless

This is one of our favorite wireless technologies. It is easy to setup and use and very reliable. You need a 802.15.4 modem that plugs into your USB port to talk any number of 802.15.4 Wireless relays with up to 1 mile range!  You can purchase a modem with the device you choose.

Wi-Fi

Much of our development work was done with embedded Wi-Fi. Put simply, we adore this technology and we think you will too. Con-figuration requires careful attention to our instructions, but once configured...wow. It's simply amazing and holds so much promise for future development work. We are working to make configuration easier, but for now, plan on reading our manual found on the product pages BEFORE purchasing....the configuration process is not for everyone.

XSC Long Range Wireless

A fantastic wireless technology that goes a long way...up to 15 miles (though we have never seen it go this far). XSC has the distinction of being the longest range wireless technology we offer, though it is limited to 57.6K Baud, it is very reliable.

ZigBee Mesh Wireless Networking

ZigBee Mesh networking is pretty slow, but extremely powerful and very reliable when you follow all the rules. We highly recommend you purchase a ZigBee Development Kit from www.digi.com before attempting to use this communication technology...this one is for the advanced user. But it has the distinction of offering a low-cost Mesh networking protocol...which means wireless data hops around the wireless network until it reaches the destination device...very cool! Very powerful, very long range, but NOT for the timid.
